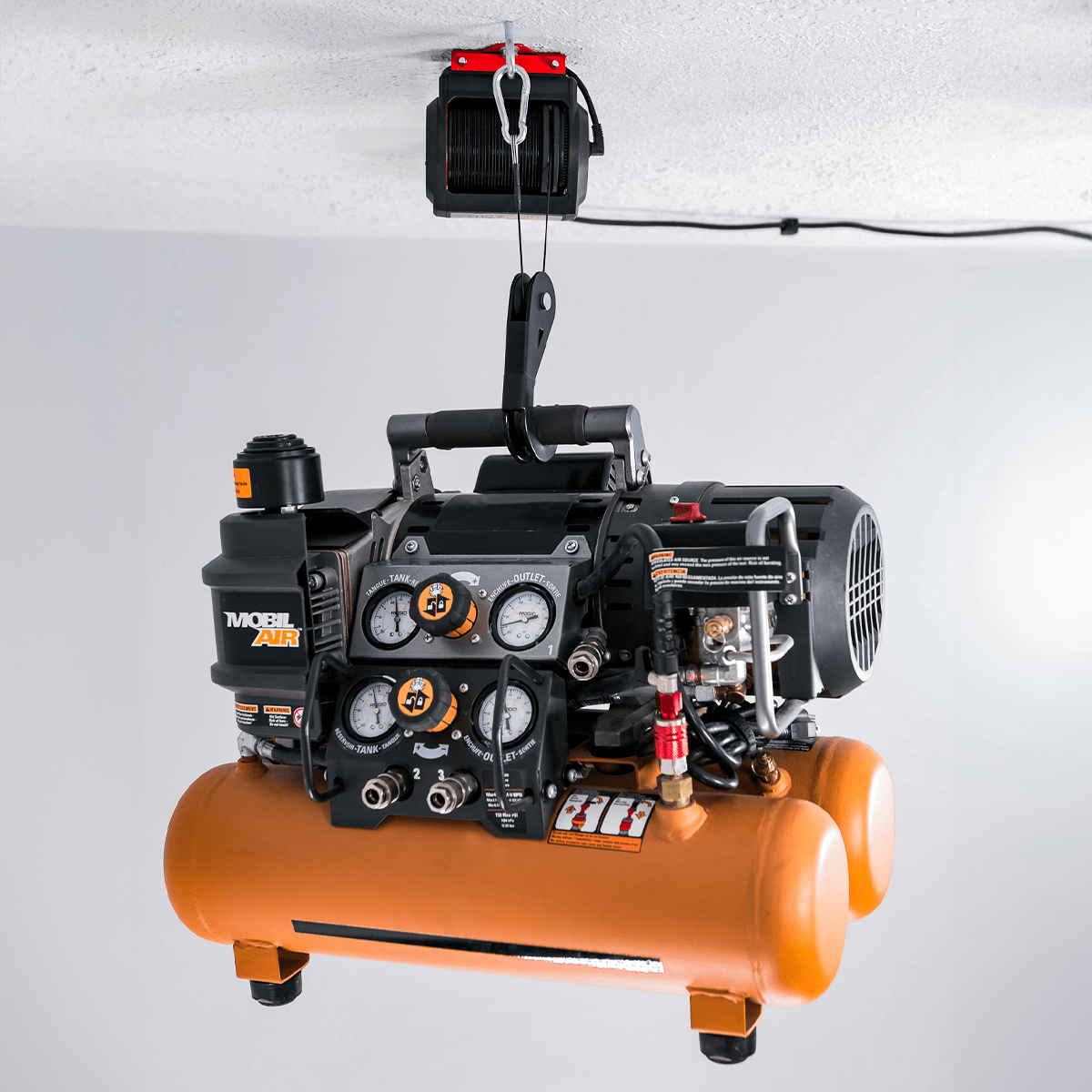

The Basic Lifter is a motorized hoist designed for garage storage. It is controlled by your smart device, allowing you to safely store your items off the garage floor and onto the ceiling, without lifting more than a finger.
Each hoist can lift up to 100 lbs. with the included pulley. Need to lift more weight? No problem! Lifters are designed to work together. Connect up to 4 lifters and watch them work as if they were one lift, to raise, lower, and store up to 400 lbs.
It is smart, easy to use, and most importantly it's safe.
Everything you need for an easy DIY installation is included. Learn more below.

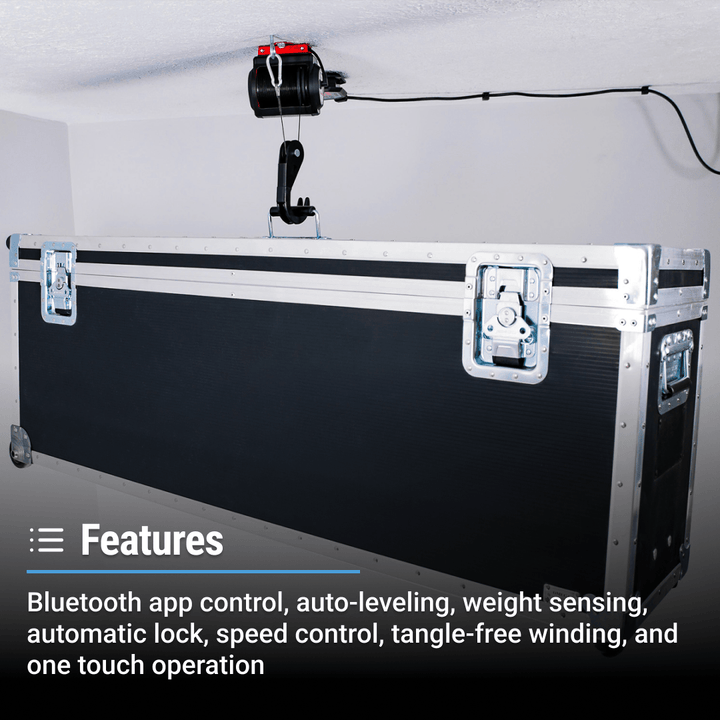

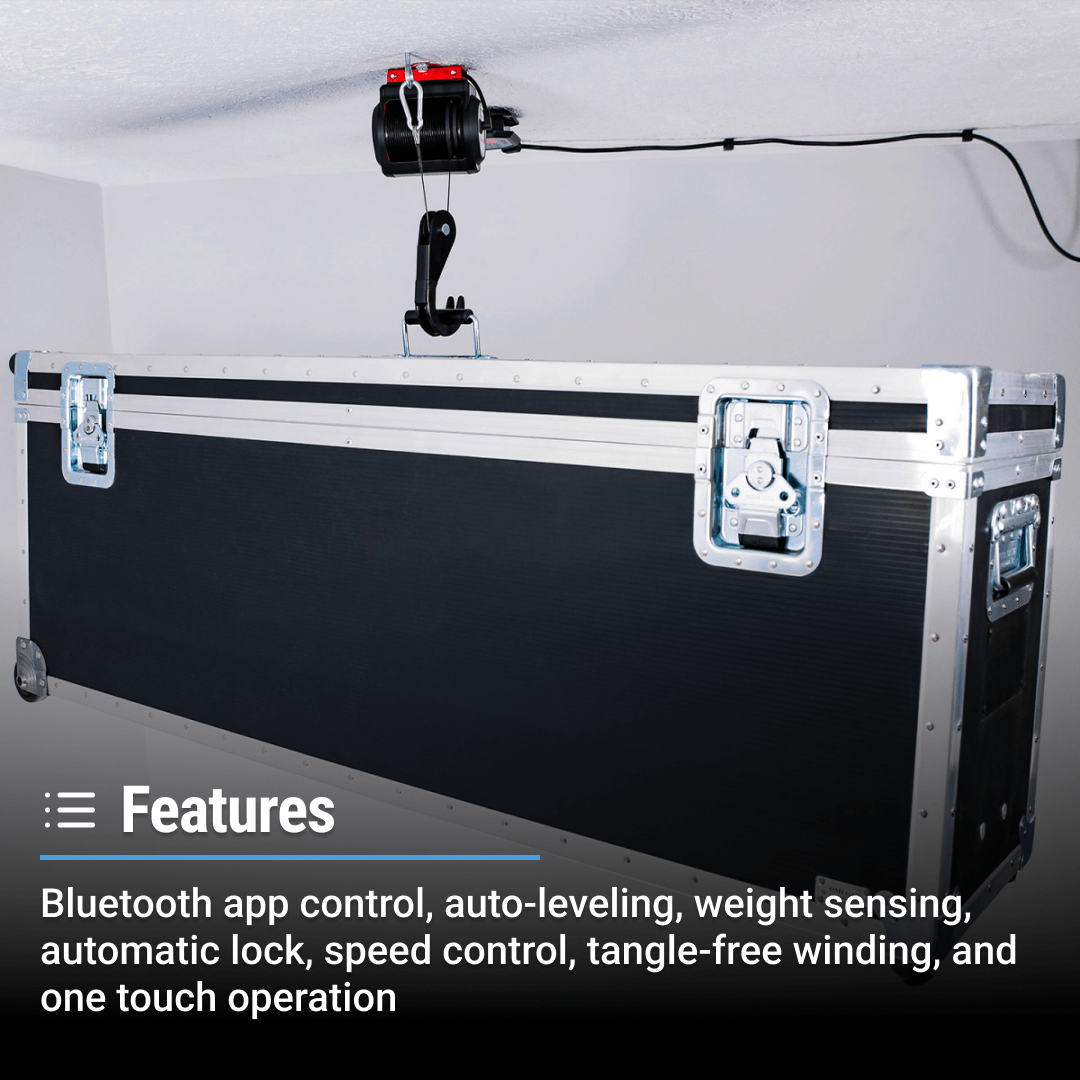

- Storage controlled by your Smart Device
- Compatible with iOS and Android Bluetooth enabled devices
- Increases garage storage space
- Safely store items out of the way
- Quick and easy access to stored items
- Engineered with weight sensing technology to ensure safety
- Always stays level, no adjusting cables or bars
- Group up to 4 lifters to lift up to 400 lbs.
- Model Number: SMT-KBS01-02
- Weight Capacity: 100 lbs. per unit
- Designed Ceiling Height: 8–13 ft. ceilings
- Hoist Cable Length: 24 ft.
- Cable Diameter: 2.5 mm.
- Voltage: 120V/60Hz, 5 AMPs
- Height: 5.125", Length: 5.325", Width: 3.325"
- Weight: 3 lbs.
- Power Adapter: DC Cable, 20 ft. and AC Cable, 6 ft.

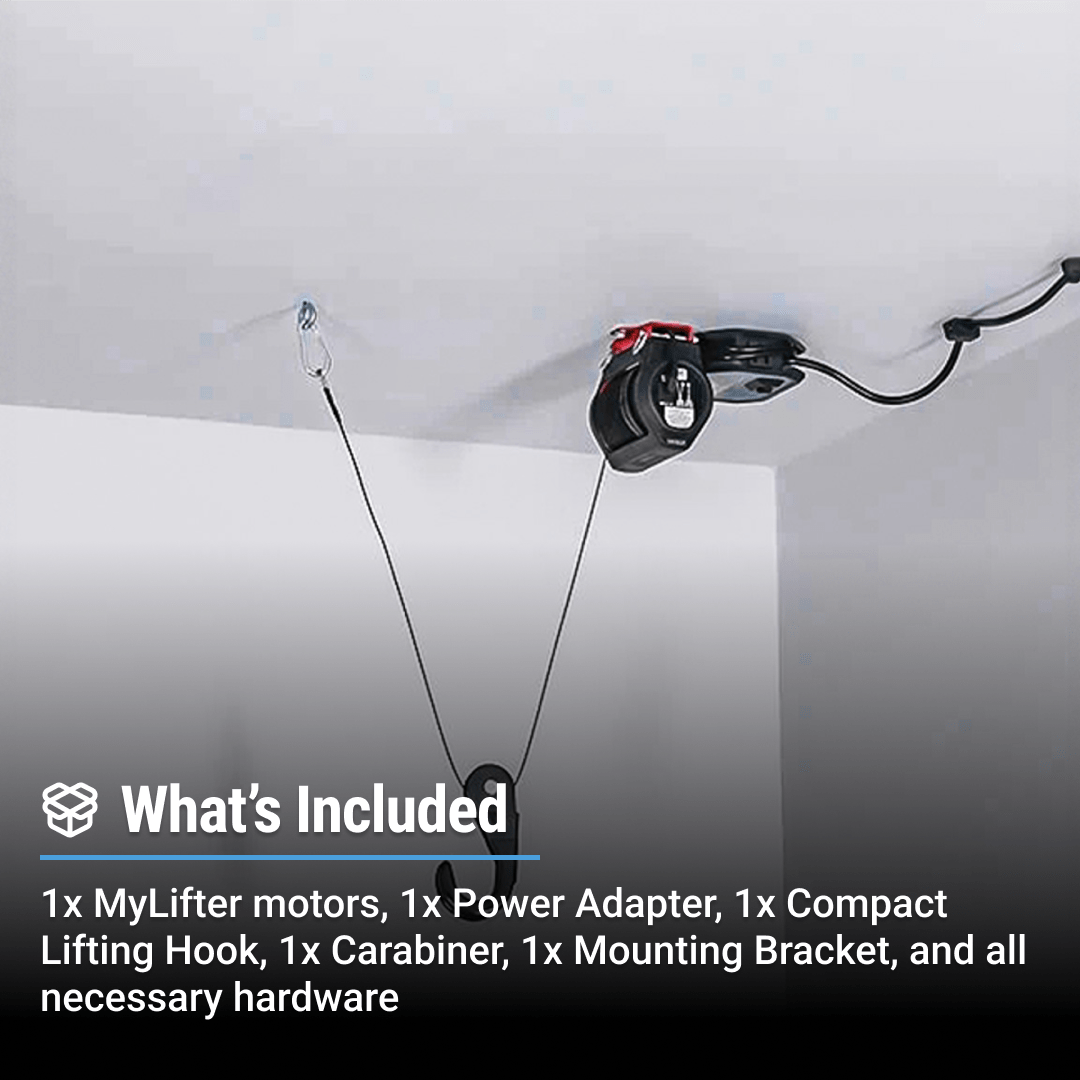

- Electric Hoist
- AC Power adapter
- DC cable
- 4 ceiling wire clips
- 24 ft. lift cable
- Hook & Pulley
- Carabiner clip
- Mounting Bracket
- All mounting hardware
Benefits Over Traditional Pulley Systems
Smart Motorization – Programmable automatic stop locations
Safety - App shows load limits and has patented brake technology
Smart Device Control – Only Smart Hoist Designed for Home and Garage Storage
Combine & Sync - Sync up to 4 Base Lifters to lift items in unison

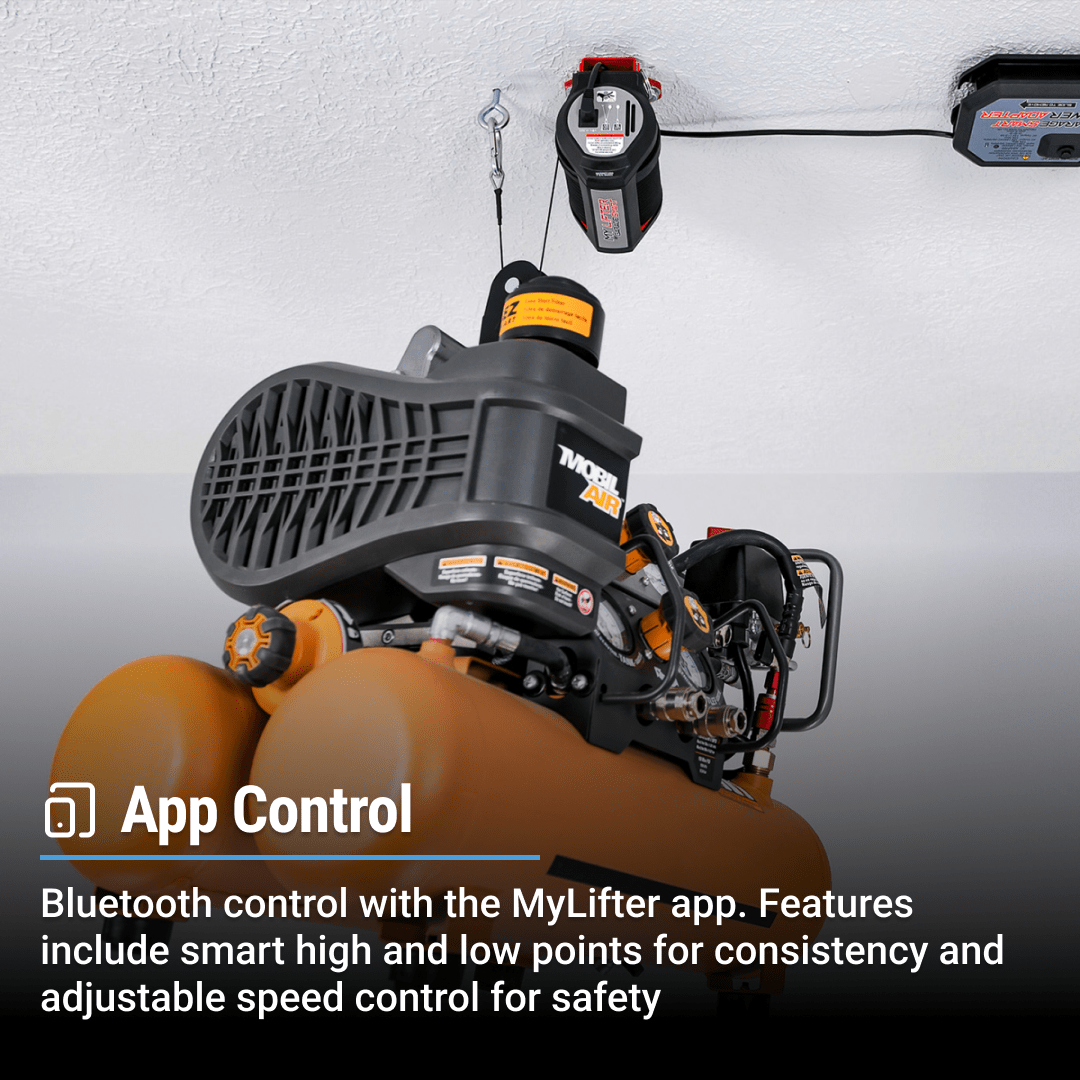

Smart Lifting Points: Accessing your stored items has never been easier. With the App's Smart Lift and Smart Lower features, you can program top and bottom stop locations for your items. Once you've set your points, simply tap the Smart Lift or Smart Lower button, and your items will automatically move to the preset points.
Built-In Weight Sensing: These sensors prevent the lifter from lifting beyond its capacity. The App's control screen will show you how close you are to your weight limit.

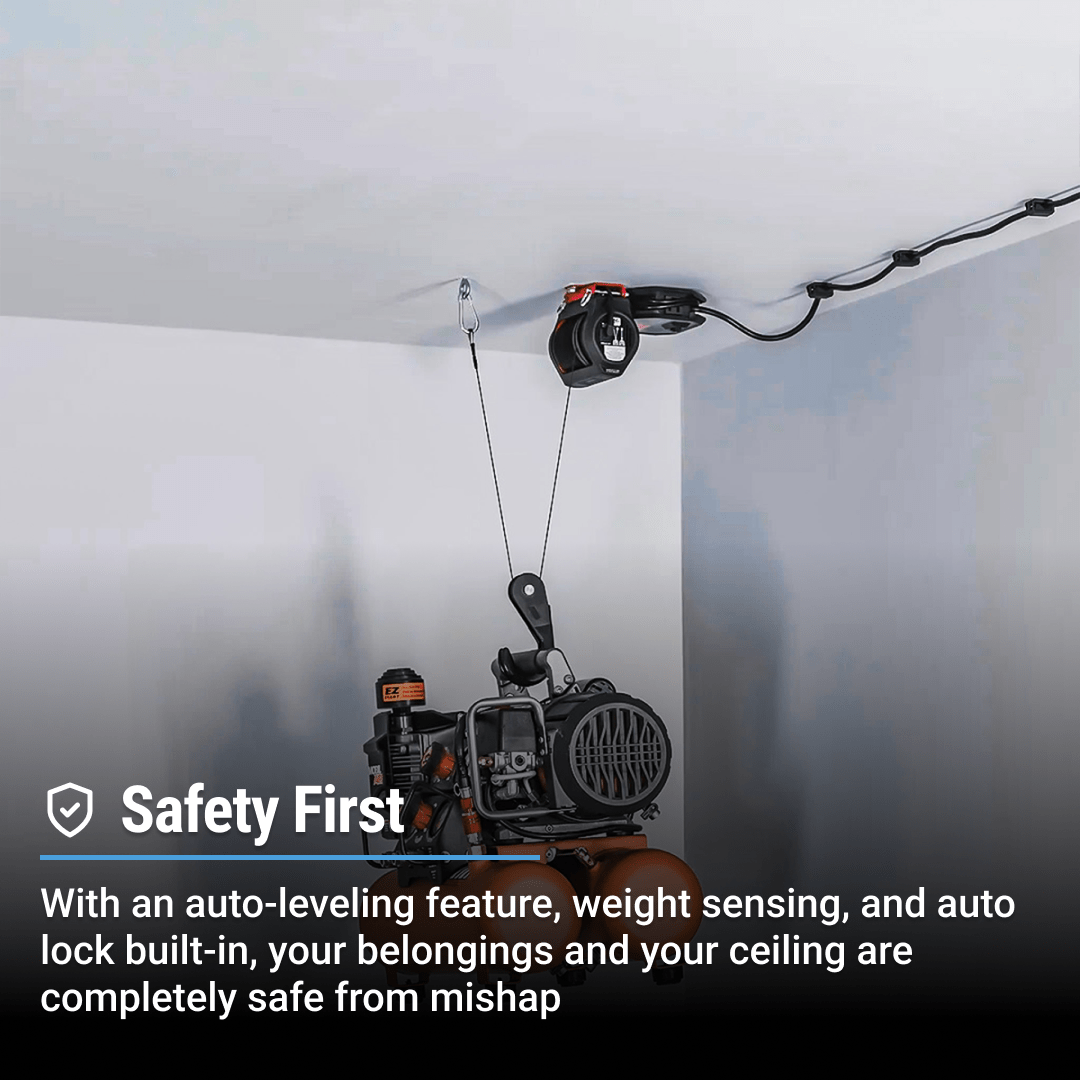

It’s Safe: Store your things with confidence that they will not fall. The Base Lifter keeps you and your overhead items secure by not letting you lift more than what it is capable of. The hoist also uses a patented internal gear braking system that automatically locks the spool when the cable is not moving, or if the unit loses power.

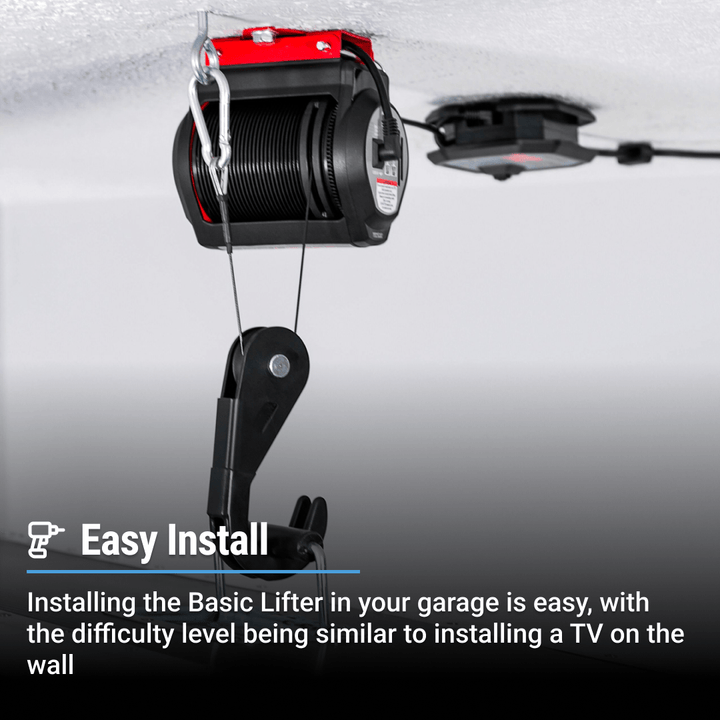

Easy Installation: Each device only weighs 3 lbs. and comes with all the hardware you need to easily install the unit to your garage ceiling. In just a few simple steps, your lifter will be mounted to your Smart Track, plugged in to the Power Adapter, paired with your App, and ready to lift your items up and out of the way!
Connectable: Lift platforms, and much more! Each base unit can lift 50 lbs. of vertical hanging weight, or up to 100 lbs. when installed with the included pulley. Sync up to 4 lifters together to lift up to 400 lbs., and control them simultaneously via the App.
It’s Certified and Tested: This lifter is UL approved. We test each lifter rigorously at various loads, temperatures, and humidity conditions to ensure that your product arrives defect free and is safe to use. See our video below to learn more about our testing:
